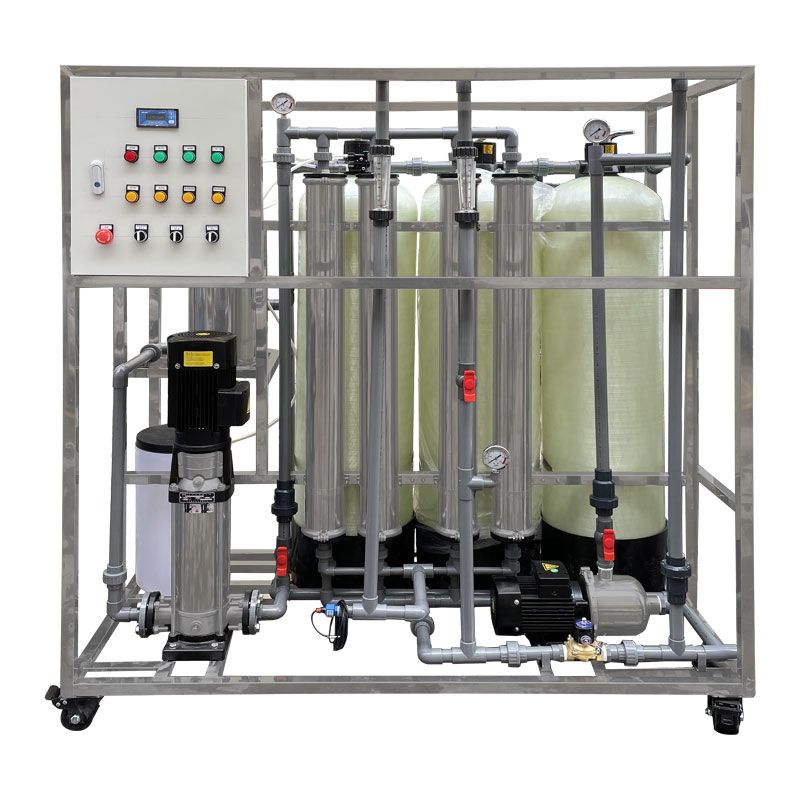

Advanced Fully Automated RO Water Treatment Equipment With Tailored Configuration Options
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-ROFB1500L |
| Minimum Order Quantity | >=1sets |
| Price | negotiation |
| Packaging Details | export standard wooden case |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T,Western Union |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate | 1000L/h (customizable ) | Core Technology | Reverse Osmosis (RO) |
|---|---|---|---|
| Operation Mode | Full Automatic (PLC-controlled) | Motive Force | Pressure |
| Material | SUS304,carbon,FRP | Produced Water Quality | Conductivity < 10μs/cm |
| Key Components | RO Membrane Modules | After-Sales Service | 1-Year Warranty (excluding Consumables) |
| Performance | Efficient Filtration | Working Pressure | 0.05-0.6MPa |
Product Description
Advanced Fully Automated RO Water Treatment Equipment With Tailored Configuration Options
I. Equipment Overview
The principle of RO water treatment system is that raw water passes through reverse osmosis membrane under high pressure, and the solvent in water diffuses from low concentration to high concentration to achieve the purpose of separation, purification and concentration. Reverse osmosis water treatment system can remove bacteria, viruses, colloid, organic matter and more than 99% soluble salts in water. The equipment has the characteristics of low operation cost, simple operation, high automation degree and stable effluent quality. Compared with other traditional water treatment methods, it has obvious advantages and is widely used in water treatment related industries.
II. Process Flow
Raw water→ Raw water tank→ Booster pump→ Quartz sand filter→ Activated carbon filter→ Sodium ion softener →Precision filter→ High-pressure pump→Reverse Osmosis host→Pure water tank
III.Main Parameters of the Reverse Osmosis System
|
Item |
Specification |
|
Model |
1000 LPH RO Water Treatment System |
|
Capacity |
1000 Liters per Hour |
|
Raw Water Source |
Tap water / Well water / Groundwater |
|
Raw Water TDS |
≤ 2000 ppm (customizable) |
|
Recovery Rate |
50–70% (depending on feed water quality) |
|
Salt Rejection |
≥ 98% |
|
Working Pressure |
1.0 – 1.5 MPa |
|
Power Supply |
220V / 380V, 50Hz / 60Hz (optional) |
|
Power Consumption |
1.5–2.2 kW (depending on pump type) |
|
High-Pressure Pump |
Stainless steel pump (CNP / Shimge / Optional brand) |
|
RO Membranes |
2–4 pcs 4040 membranes (DOW / Vontron / Optional) |
|
Pre-filtration Stages |
PP sediment filter → Activated carbon → Softener / Sand filter (depending on configuration) |
|
RO Frame Material |
SUS304 stainless steel |
|
Control System |
Automatic controller / PLC (optional) |
|
Flow Meters |
Permeate & concentrate flow meters |
|
Pressure Gauges |
High-pressure & low-pressure gauges |
|
Conductivity Meter |
Online water quality monitoring |
|
Protection Functions |
Low-pressure protection / High-pressure shutdown / Auto-flush |
|
Operating Temperature |
5–45°C |
|
Dimension |
Approx. 1400 × 600 × 1500 mm (can be customized) |
|
Net Weight |
Approx. 120–160 kg (depends on configuration) |
Identify needs
Could you clarify the following issues, so that you can determine the right equipment for you?
Water quality problems
Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1. Daily Water Consumption: Just mail a bottle of water sample
2. Water Standard: Just tell me your industry.
3. Water Consumption: We can help you calculate the water consumption.
