Industrial 30TPH Ultrapure Water System with Two-Pass RO and EDI for High Purity Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) | Warranty | 1 Year |
|---|---|---|---|
| Control | Electric Auto Control (PLC ) | Desalination Rate | ≥ 99% |
| Material | Stainless Steel 304/Fiberglass | Productivity | 30TPH / Custom |
| Product Name | Ultrapure Water System | Filter Media | Sand+carbon+softener+RO+EDI |
| Highlight | 30TPH Ultrapure Water System,Two-Pass RO UPW System,EDI Ultrapure Water Equipment |
||
Product Description

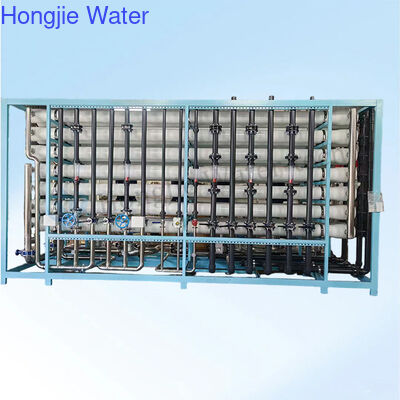

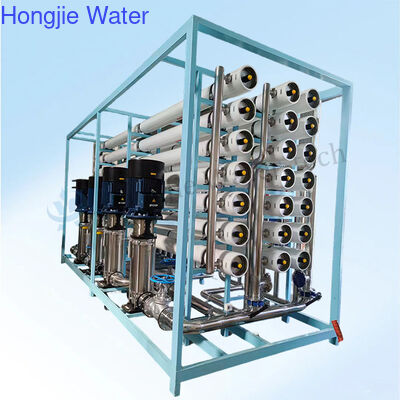

Industrial 30TPH Ultrapure Water System with Two-Pass RO and EDI
The Industrial 30 TPH Ultrapure Water System with Two-Pass RO and EDI is engineered to deliver stable, high-purity ultrapure water for demanding industrial applications. This advanced system integrates ultrafiltration (UF), two-pass reverse osmosis (RO), EDI (electrodeionization) and polishing units to ensure consistent water quality, exceptional reliability and long-term operational efficiency.
This ultrapure water system employs a two-pass RO configuration with high-rejection membranes to effectively remove dissolved salts, organic matter and silica. The downstream EDI system further eliminates trace ions without chemical usage, enabling continuous production of ultrapure water with high resistivity and low conductivity. An optional polishing mixed bed (PMB) can be incorporated as a final treatment step to meet ultra-strict water quality requirements.
Key Features & Advantages
- Ultra-High Purity Water: Two-Pass RO + EDI delivers stable ultrapure water with ultra-low conductivity
- Chemical-Free Operation: EDI system eliminates acid and alkali regeneration, ensuring safer and eco-friendly operation
- Industrial-Grade Reliability: Proven components and robust design for 24/7 continuous operation
- High Efficiency & Water Recovery: Optimized process reduces water consumption and operating costs
- Fully Automated Control: PLC + HMI for real-time monitoring and intelligent operation
- Modular & Customizable Design: Skid-mounted system tailored for diverse industrial applications
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | High Purity UPW System |
| Design Capacity | 30 TPH |
| Operation Mode | Continuous |
| Recovery Rate | RO system: 70-75% |
| Overall Water Recovery | ≥ 65% |
| Feed Water TDS | ≤ 1,000 mg/L |
| Feed Water Pressure | 0.2 - 0.6 MPa |
| Operating Pressure | 0.8 - 1.6 MPa |
| Operating Temperature | 5 - 35 °C |
| pH Range (Feed Water) | 3 - 10 |
| SDI (15 min) | ≤ 3 |
| Turbidity | ≤ 1 NTU |
| Salt Rejection (RO) | ≥ 99.5% |
| EDI Product Resistivity | ≥ 18.0 MΩ*cm |
| Power Consumption | Customized |
| Control System | PLC + HMI |
| Automation Level | Fully Automatic |
| Installation Type | Skid-mounted / Containerized (optional) |
| Design Standard | Customized / International Standards |
| Service Life | ≥ 15 years (key equipment) |
System Selection Guidance
Identify Your Water Treatment Requirements
Clarify the following aspects to determine the optimal equipment configuration for your specific needs:
Water Quality Analysis
Identify specific water quality challenges such as:
- Sediment exceeding standards
- Scale formation issues
- Turbid water conditions
- Microbial contamination
- Heavy metal exceedances
- Other specific contaminants
Required Water Standards
Define your target water quality specifications:
- Softened water
- Pure water
- Ultra-pure water
- Iron and manganese removal
- Sediment removal
- Sterilization requirements
Water Consumption Profile
Assess your operational water usage patterns:
- Peak consumption periods
- Daily operational hours
- Maximum hourly water consumption
- Average hourly water consumption
System Recommendation Examples
- 5 tonnes per hour water softening equipment
- 3 tonnes per hour reverse osmosis water purification equipment
Need Assistance Determining Your Requirements?
- Water Quality Analysis: Submit a water sample for comprehensive testing
- Water Standards: Specify your industry application for appropriate recommendations
- Water Consumption: Our engineering team can calculate optimal system sizing based on your operational needs
