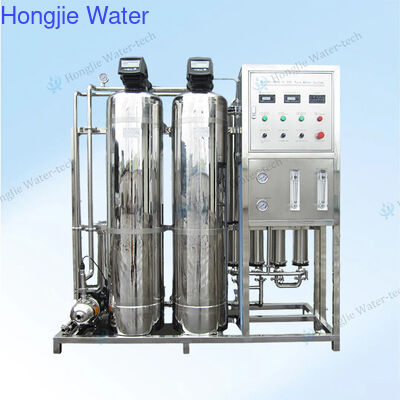

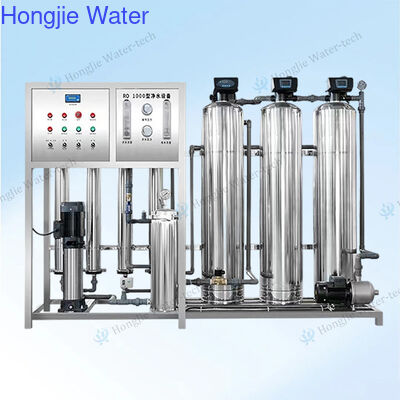

SS316L Stainless Steel 1000LPH Dialysis Water Purification System With RO Filter
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | HongJie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-RO1000L |
| Minimum Order Quantity | >=1sets |
| Price | US$2900~US$3200 |
| Packaging Details | export standard wooden case |
| Delivery Time | 1-7working days(depand on raw materials stocking) |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,MoneyGram |
| Supply Ability | >300sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate | 1000L/h (customizable ) | Conductivity | ≤10 μS/cm (at 25℃), Fresh Water Is Usually 1-5 μS/cm |
|---|---|---|---|
| Core Technology | Reverse Osmosis (RO) | Key Components | RO Membrane Modules |
| Operation Mode | Full Automatic (PLC-controlled) | After-Sales Service | 2-Year (excluding Consumables) |
| TOC | ≤0.5 Mg/L | PH Value | 5.0-7.0 |
| Recovery Rate | 30%-70% | Working Pressure | 1.0-1.5 MPa |
| Material | 316L Stainless Steel | Desalination Rate | ≥95% (high-quality Membranes Can Reach 98%-99%) |
| Highlight | 1000LPH Dialysis Water Purification System,SS316L Dialysis Water Purification System,1000LPH dialysis water treatment systems |
||
Product Description
316L stainless steel 1000LPH Dialysis Water Purification Machine with RO filter
I.Overview
In hemodialysis, dialysate water contacts patient blood indirectly through the dialysis membrane. Impurities like microorganisms, endotoxins, heavy metals (lead, copper), salts (chlorine, calcium), or organic compounds can cause severe risks including hemolysis, infections, and poisoning.Thus, dialysis water must meet ultra-high purity standards (e.g., ISO 13959 or *GB 5749-2022 special requirements*), far exceeding drinking water norms. It requires near-total removal of soluble impurities, microbes, and pyrogens.
Reverse Osmosis (RO) is the only core technology capable of efficiently achieving this purity—rejecting >95%-99% of salts, organics, microorganisms, and endotoxins. It serves as the essential "core barrier" for high-purity dialysis water.
316L stainless steel is the core material for components that come into direct contact with fluids (blood, dialysis fluid) in dialysis equipment. Its performance directly affects the safety of the treatment process and the reliability of the equipment, and is an important guarantee for the high precision and low pollution operation of medical-grade dialysis systems.
II.Standard Process Flow
Raw Water → Pretreatment (Sand Filtration → Activated Carbon Adsorption → Water Softening → Precision Filtration) → Reverse Osmosis (RO) → Post-Treatment (Deionization/EDI → UV Sterilization) → Dialysis-Grade Water
III.Key Roles of 316L Stainless Steel
| Application Area | Components | Key Roles of 316L Stainless Steel | Typical Scenarios | |
| Membrane Module Support | Frame, separator fixtures | Stable support; resists dialysis fluid corrosion; reduces membrane wear | ED/DD membrane stacks (high-salt, acid/alkali systems) | |
| Fluid Conveyance | Pipes, valves, joints | Resists ion corrosion; withstands 30-80℃; smooth inner wall (reduces scaling) | Pharmaceutical/food dialysis pipelines (chloride-containing fluids) | |
| Equipment Structure | Casing, rack | Resists moisture/acid-alkali mist; high strength for pressure fluctuations | Industrial ED equipment (chemical/metallurgical sectors) | |
| Electrode Systems | Connecting pieces, supports | Ensures conductivity; resists oxidation/reduction corrosion (e.g., Cl₂, O₂) | ED/EDR electrode-membrane stack connections | |
| Sealing/Fastening | Bolts, flanges | Prevents leakage; resists rust in long-term immersion | Detachable parts (especially lab dialyzers) | |
| Cleaning Systems | Tanks, pump impellers | Resists acid-alkali cleaners; no metal ion leaching | Pharmaceutical CIP systems for dialyzers | |
VI. Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
