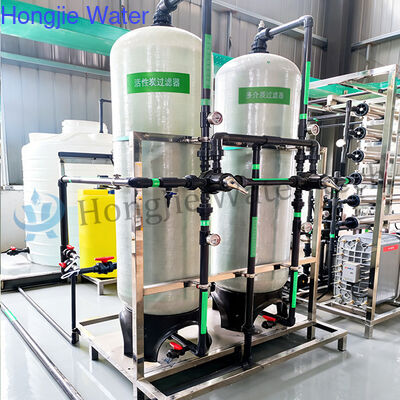

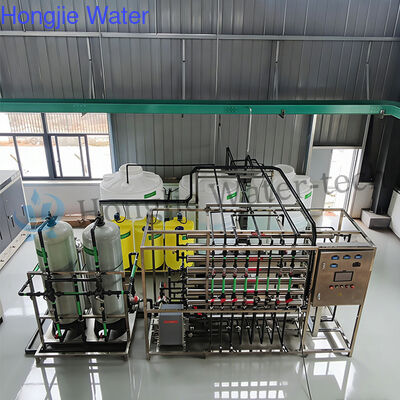

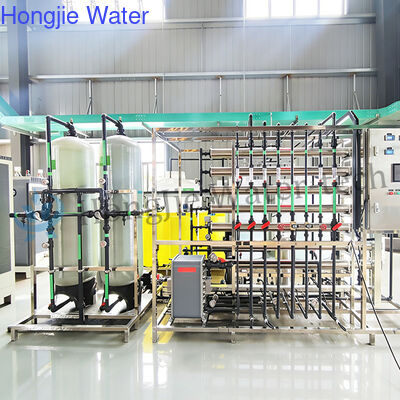

1.5 TPH Ultra Pure Water System with Double Pass RO and EDI Technology for Industrial Applications

1.5 TPH Ultra Pure Water System with Double Pass RO and EDI Technology for Industrial Applications

Brand Name:	Hongjie
Model Number:	HJ-UP1T
MOQ:	1set
Price:	negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	>300sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO 14001,ISO 9001,CE,EPA

Voltage:

380V, 220V/50HZ Etc; (Power Supply Can Be Customized)

Warranty:

1 Year

Control:

Electric Auto Control (PLC )

Desalination Rate:

≥ 99%

Material:

Stainless Steel 304/Fiberglass

Productivity:

1500LPH / Custom

Product Name:

Ultrapure Water System

Filter Media:

Sand+carbon+softener+2RO+EDI

Packaging Details:

export standard wooden case

Highlight:

1.5 TPH Ultra Pure Water System

Double Pass RO Water Purification System

EDI Technology Ultrapure Water Equipment

Product Description

1.5 TPH Ultra Pure Water System

Advanced water purification system integrating sand carbon filtration, double pass reverse osmosis, and electrodeionization technologies for industrial applications requiring ultra-pure water.

System Overview

This 1.5 TPH ultra pure water system combines multi-stage filtration, reverse osmosis, and electrodeionization technologies to deliver water purity meeting stringent industrial standards. Ideal for pharmaceuticals, electronics, and power generation industries.

Process Flow

Raw Water Inlet: Water enters the system and flows into sand carbon filter
Sand Carbon Filter: Preliminary filtration removes suspended solids, chlorine, and organic contaminants
Double Pass Reverse Osmosis:
- First-stage RO: Removes large amounts of dissolved solids, salts, and impurities
- Second-stage RO: Further purification ensures highest water quality
EDI (Electrodeionization): Removes residual ions after RO process
Ultra Pure Water Output: Final output ready for sensitive industrial applications

Technical Specifications

System Capacity	1.5 tons per hour (1.5 TPH)
Pre-Treatment	Sand Carbon Filter
Filtration Process	Double Pass Reverse Osmosis + EDI
Water Purity	Ultra Pure Water (conductivity ≤ 0.1 µS/cm)
Power Consumption	5.5 kW (approximate)
Max Operating Pressure	8 bar (116 psi)
Recovery Rate	75% to 85%
Dimensions (LWH)	2500 * 1000 * 2000 mm
Control Type	Fully Automatic PLC with touchscreen
Warranty	1 Year
Material	Stainless Steel Frame, FRP Tanks

Equipment Selection Guide

Identify Your Water Treatment Needs

Answer these key questions to determine the right equipment for your application:

Water Quality Problems

Examples: Sediment exceeds standards, scaling issues, turbid water, microbial contamination, heavy metal exceedance, manganese exceedance, etc.

Required Water Standard

Examples: Softened water, pure water, ultra-pure water, iron and manganese removal, sediment removal, sterilization, etc.

Daily Water Consumption

Examples: Concentrated water consumption periods, water consumption timing, peak maximum water consumption, hourly average water consumption.

Need Assistance?

If you cannot clearly answer the above questions:

Daily Water Consumption: Mail us a water sample for analysis
Water Standard: Simply tell us your industry
Water Consumption: We can help calculate your water consumption requirements
