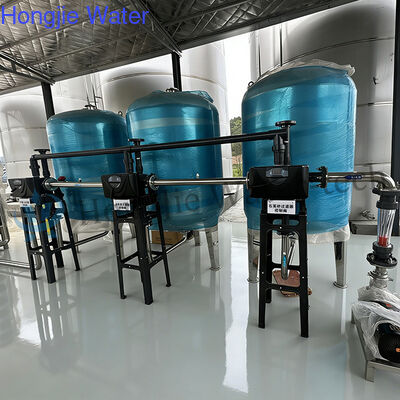

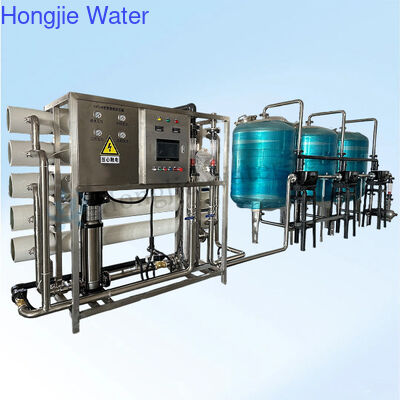

10T/H High-Capacity Industrial RO Water Treatment Plant with Full Stainless Steel Construction and Fully Automatic Operation
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongjie |
| Certification | ISO 14001,ISO 9001,CE,EPA |
| Model Number | HJ-ROFB10T |
| Minimum Order Quantity | >=1sets |
| Price | negotiation |
| Packaging Details | export standard wooden case |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T,Western Union |
| Supply Ability | >300sets/month |
Product Details
| Warranty | 1 Year | Control Mode | Fully Automatic Operation |
|---|---|---|---|
| Desalted Water | ≥99% | Pipe Material | PVC & SS |
| Pre-Filter | Quartz Sand, Activated Carbon, Resin, Manganese Sand | Membrane Shell Material | FRP & SS |
Product Description
10T/H Industrial Stainless Steel RO System | 10000 LPH Reverse Osmosis Plant
Our 10T/H High-Capacity Industrial RO System delivers a massive 10,000 LPH output with full stainless steel construction. Designed for large-scale industrial operations, this system achieves superior water purity with a 95-99% desalination rate.
Core Highlights
- Massive Output: Delivers 10,000 Liters of purified water every hour
- Industrial Grade: Heavy-duty 304/316 Stainless Steel construction
- Smart Control: Siemens/Delta PLC with full-color HMI touch screen
- Efficiency: High-recovery design minimizes wastewater discharge
- Membrane Tech: Uses 8040 industrial membranes for 99% salt rejection
- Safety: Real-time monitoring of pressure, flow, and conductivity
Application Scenarios
- Bottling Plants: Ideal for high-volume mineral or pure water bottling
- Electronics: Provides ultrapure water for semiconductor washing
- Textile & Dyeing: Removes impurities to ensure consistent fabric colors
- Boiler Feed: Prevents scaling and corrosion in high-pressure boilers
- Large Communities: Reliable drinking water for schools, camps, or townships
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | RO-10TPH-SS |
| Production Capacity | 10,000 Liters/Hour (10m³/h) |
| Recovery Rate | 50% - 75% (Adjustable) |
| Frame & Pipe Material | SUS304 / SUS316 Stainless Steel |
| RO Membrane Qty | 10 - 12 Units (8040 Industrial Size) |
| System Power | 11kW - 15kW (Depending on Pump) |
| Pre-treatment | Automated Quartz Sand & Activated Carbon Filters |
| Power Consumption | 5-7 kW (depending on configuration) |
Frequently Asked Questions
Q: Can this 10T/H system run 24/7 without manual supervision?
A: Yes. The PLC manages everything. It automatically flushes the membranes, monitors tank levels, and shuts down during any pressure anomalies.
Q: Why use a full stainless steel system over a PVC/U-PVC one?
A: Stainless steel is necessary for high-pressure 10T/H loads. It offers superior durability, resists bacterial growth, and withstands harsh industrial cleaning chemicals.
Q: What is the footprint of this 10T/H RO plant?
A: It is a skid-mounted design. This saves space and makes installation fast. It typically requires about 15-20 square meters for the full setup.
Guidelines for Getting a Proper Quotation
- Tell us the production capacity you want (500L/H, 1T/H, 2T/H, etc.)
- What is your source water (tap water, underground water, etc.)
- What is the product water used for (drinking, bottled water, etc.)
- If you have a water report, please send it to us
