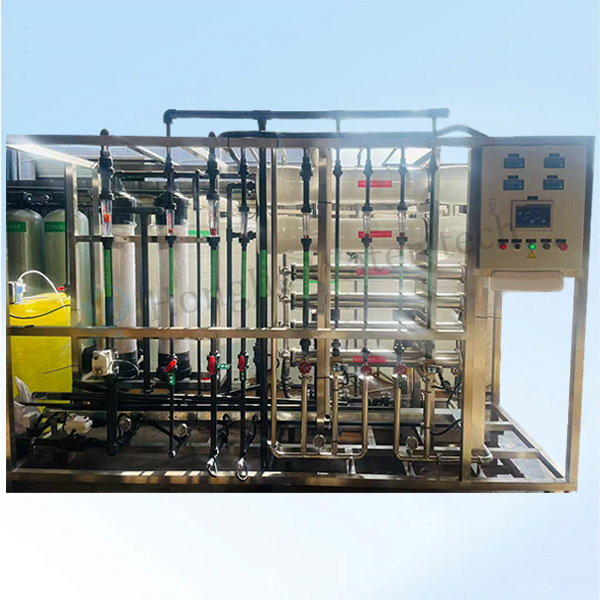

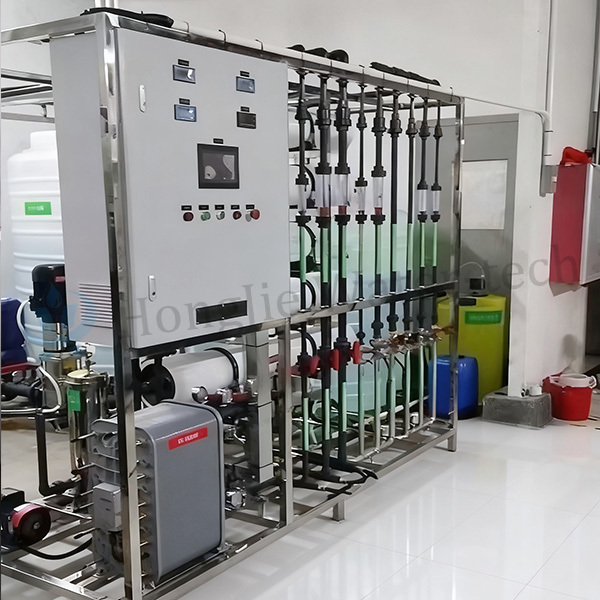

2 M³h Ultrapure Water Equipment For High-Purity Applications
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V, 220V/50HZ Etc; (Power Supply Can Be Customized) | Warranty | 1 Year |
|---|---|---|---|
| Control | Electric Auto Control (PLC ) | Desalination Rate | ≥ 99% |
| Material | Stainless Steel 304/Fiberglass | Productivity | 2000LPH / Custom |
| Product Name | Ultrapure Water System | Filter Media | Sand+carbon+softener+RO+EDI |
You can tick the products you need and communicate with us in the message board.
Product Description
2 M³h Ultrapure Water Equipment For High-Purity Applications
I.Product Description
The 2 m³/h Ultrapure Water Equipment is designed to deliver consistently high-purity water for industries requiring exceptional quality standards. Combining advanced reverse osmosis (RO) technology with mixed-bed ion exchange and precision polishing systems, it ensures conductivity and TOC levels meet ultrapure specifications. The system features automatic control, real-time monitoring, and durable components to guarantee stable operation and low maintenance. Compact in design yet powerful in performance, it provides a reliable solution for laboratories, semiconductor production, pharmaceutical processing, and other high-demand applications.
II.Flowchart

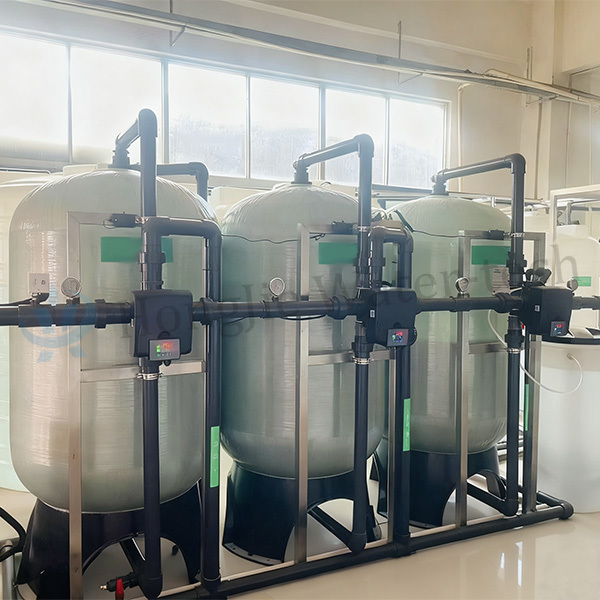

Raw water→raw water tank→raw water pump→sand filter→carbon filter →water softener→salt tank→cartridge filter→high pressure pump→RO membrane→EDI Booster pump→EDI machine→pure water tank→water point
III.Specification
|
Item |
Specification / Description |
|
Model |
2 m³/h Ultrapure Water System |
|
Feed Water Source |
Tap water / softened water |
|
Production Capacity |
2 m³/h (≈ 2000 L/h) |
|
Water Quality (Product) |
Resistivity ≥ 15–18 MΩ·cm; TOC ≤ 10 ppb; Silica ≤ 0.1 mg/L |
|
Conductivity (Product) |
≤ 0.067 μS/cm |
|
Recovery Rate |
60–70% (depending on feed water quality) |
|
Pretreatment System |
Multi-media filter, activated carbon filter, softener, cartridge filter (5 μm) |
|
Main Purification Stage |
Double-pass RO system |
|
Polishing Stage |
EDI (Electrodeionization) or Mixed-Bed Ion Exchange Unit |
|
Sterilization / Final Filtration |
UV sterilizer + 0.2 μm precision filter |
|
Control System |
PLC automatic control with touchscreen interface |
|
Monitoring |
Online conductivity, flow, pressure, and temperature monitoring |
|
Material (Pipeline / Tank) |
SUS 304 / 316L stainless steel or sanitary-grade PVC |
|
Operating Pressure (RO) |
1.0–1.5 MPa |
|
Power Supply |
AC 380 V / 50 Hz / 3 Phase (customizable) |
|
Ambient Temperature |
5 – 40 °C |
|
Installation Type |
Skid-mounted compact design |
|
Applications |
Semiconductor, pharmaceutical, laboratory, precision manufacturing, optics, etc. |
Identify needs
Clarify the following issues, and you can determine the right equipment for you.
Water quality problems
Example 1: sediment exceeds the standard/scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard/money Yu exceeds the standard, etc.
Water standard
Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation, etc.
Daily Water Consumption
Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption
Conclusion Example
5 tonnes per hour water softening equipment.
3 tonnes per hour reverse osmosis water purification equipment
If you can't answer the above questions clearly?
1. Daily Water Consumption: Mail a bottle of water sample
2. Water Standard: Just tell me your industry.
3. Water Consumption: We can help you calculate the water consumption.
